GERMAN ENGINEERED. BUILT FOR REALITY.

Inspector Touch

SMARTER. FASTER. INTUITIVE.

German-Engineered portable videoscope system for precise remote visual inspection in demanding industrial environments.

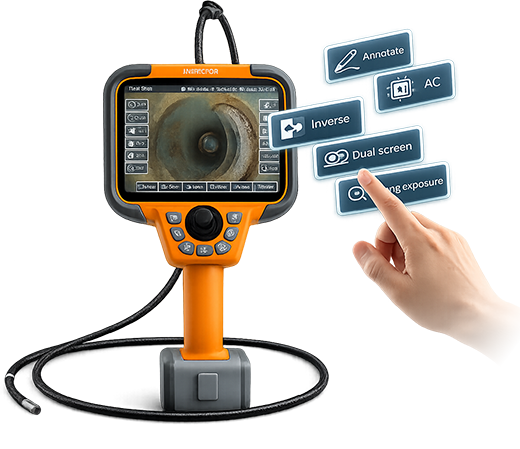

RVI Innovation Inspector

6"IPS TOUCHSCREEN


TOUCH OS

6-inch Touchscreen

Large, bright display for intuitive use

Interchangeable Probes

Wide range of diameters for every application

Touch OS Workflow

Intuitive interface for faster inspections

Modular Battery

Quick change. Long run time.

Overview

WORK SMARTER. INSPECT BETTER.

Inspector Touch combines a large 6-inch touchscreen with powerful imaging and intuitive software to help you work smarter in the field. Built for industrial environments.

  • 6-inch touchscreen for intuitive operation
  • Crystal-clear imaging for confident inspections
  • Intuitive Touch OS for faster workflows
  • Rugged, reliable design for industrial conditions
Inspector Touch

INTUITIVE SOFTWARE. POWERFUL RESULTS.

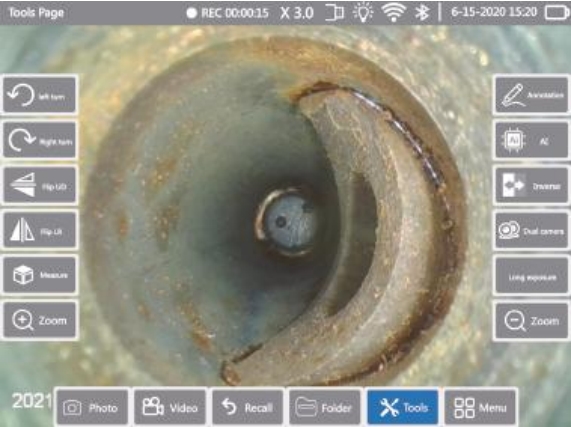

Interactive Touch OS-Interactive Touch OS

Interactive Touch OS

User-friendly interface for quick navigation and control.

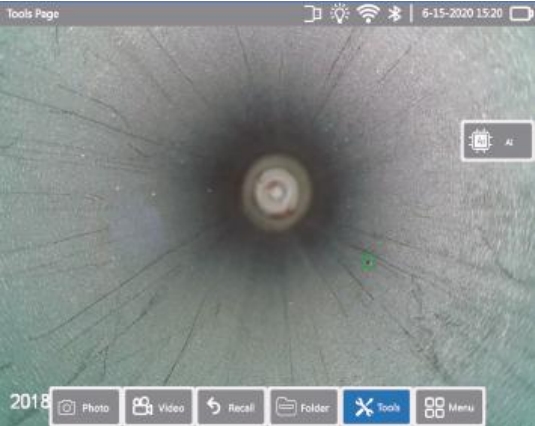

Interactive Touch OS-AI Assistance

AI Assistance

AI-powered features for enhanced inspections and insights.

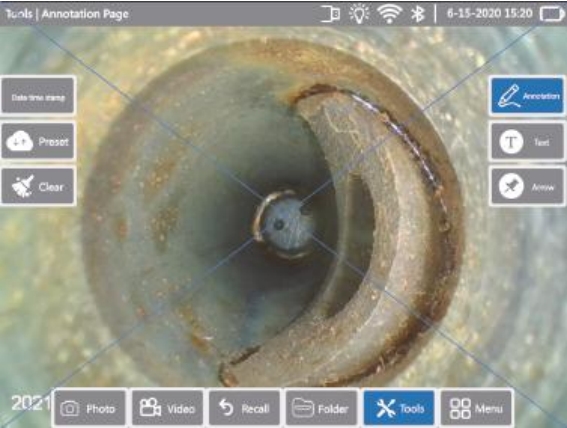

Interactive Touch OS-Smart Annotation

Smart Annotation

Add notes, arrows, and measurements directly on the image.

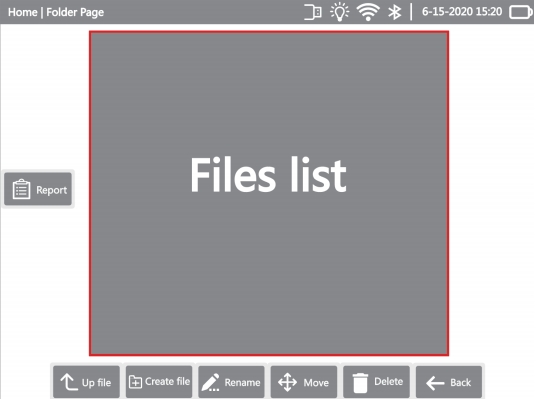

Interactive Touch OS-Smart File System

Smart File System

Organize, review, and manage inspections with ease.

ONE SYSTEM. MANY POSSIBILITIES.

0.95 mm probe

0.95 mm

1.2 mm probe

1.2 mm

1.8 mm probe

1.8 mm

2.4 mm probe

2.4 mm

2.8 mm probe

2.8 mm

4.0 mm probe

4.0 mm

6.0 mm probe

6.0 mm

8.4 mm probe

8.4 mm

Wide range of interchangeable probes from 0.95 mm to 8.4 mm for different inspection tasks.

KEY ADVANTAGES

TOUCHSCREEN EFFICIENCY

Intuitive operation for faster, more efficient inspections.

HD IMAGE QUALITY

High-definition imaging for clear, confident results.

JOYSTICK ARTICULATION

360° all-way articulation for precise control.

REAR LED ILLUMINATION

Powerful, even lighting for dark spaces.

REPAIR-FRIENDLY MODULAR SYSTEM

Designed for easy service and long-term reliability.

TYPICAL APPLICATIONS

TECHNICAL HIGHLIGHTS

DISPLAY
6-inch Touchscreen LCD
RESOLUTION
1920x1080
PROBE DIAMETER
0.75 mm – 8.4 mm
PROBE LENGTH
1.0 m – 10 m varies by model
ARTICULATION
Joystick 360° all-way articulation
ILLUMINATION
High-intensity rear LED
IMAGE/VIDEO OUTPUT
HDMI
POWER SUPPLY
Modular Li-ion battery
BATTERY LIFE
Up to 4 hours typical
WEIGHT MAIN UNIT
Approx. 1.3 kg with battery
